Technical Details

Configurator

HX50

HX50

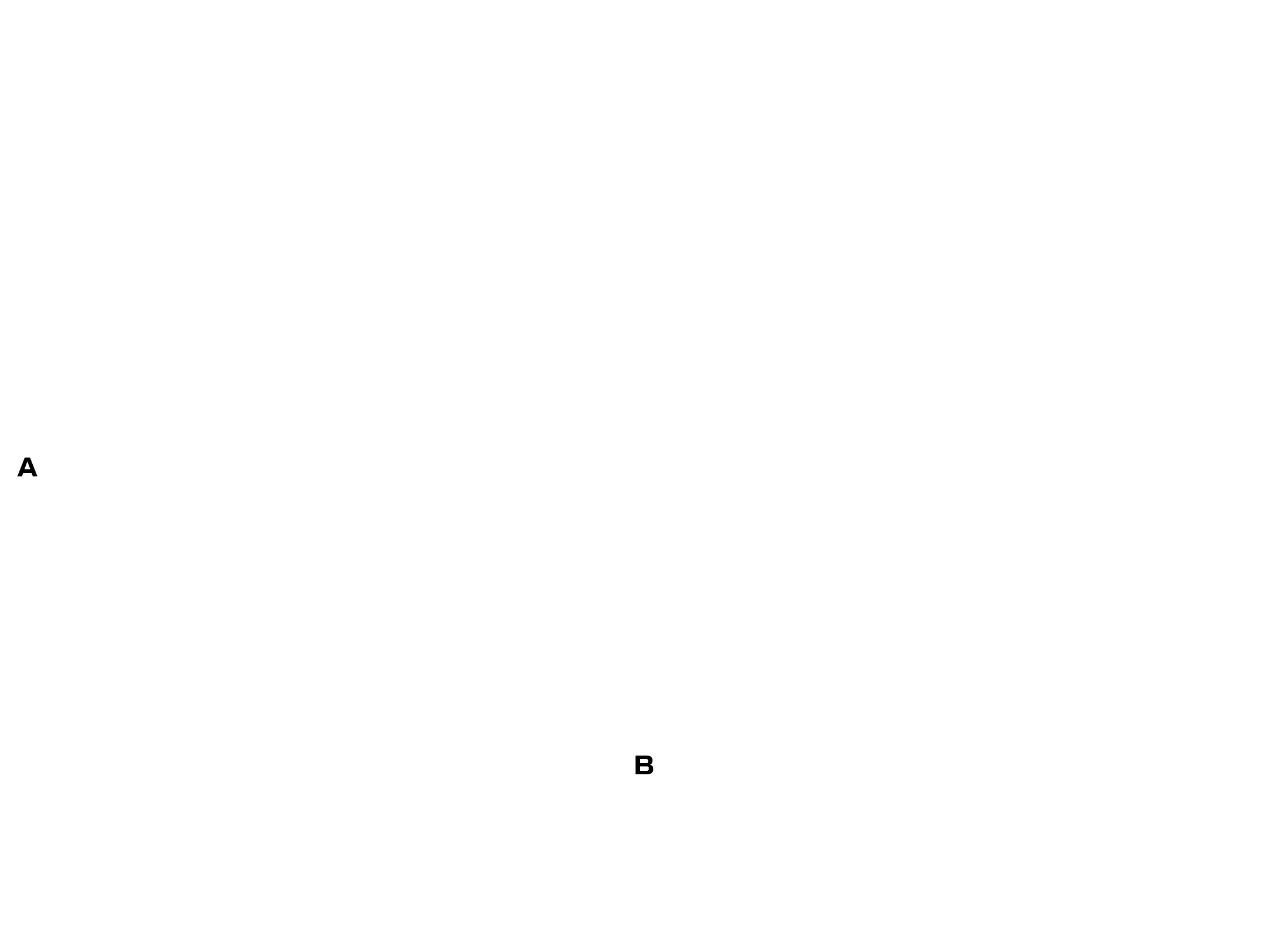

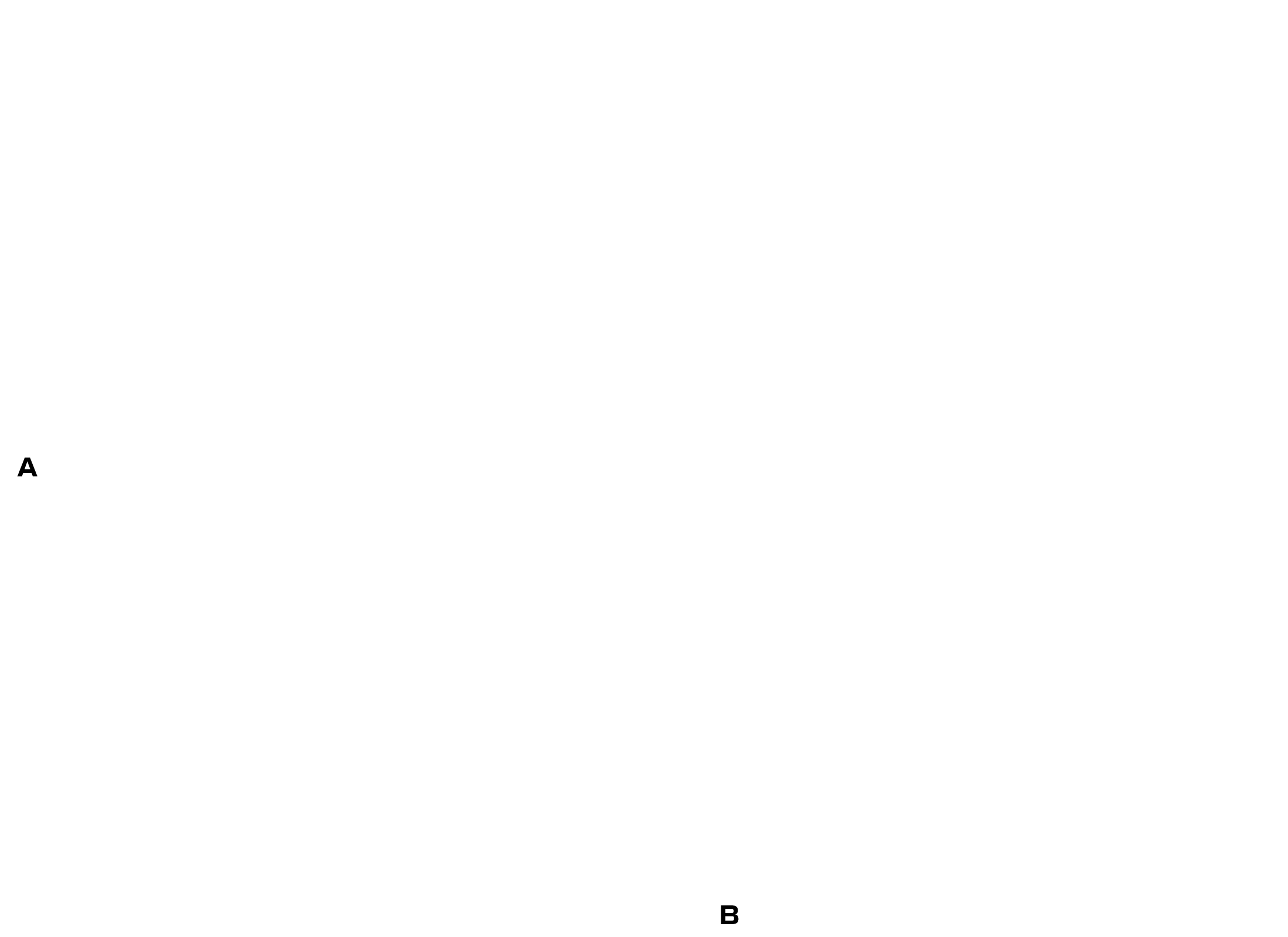

Dimensions

	Length	463.4 ″ 11,770 mm
	Body Length	386.6 ″ 9,820 mm
	Height	129.5 ″ 3,290 mm

	Width	342.5 ″ 8,700 mm
	Length	463.4 ″ 11,770 mm

	Width	342,5 ″ 8,700 mm
	Length	386.6 ″ 9,820 mm

	Body Width	102.4 ″ 2,600 mm
	Body Length	386.6 ″ 9,820 mm

	Height	129.5 ″ 3,290 mm
	Body Width	102.4 ″ 2,600 mm

	Max Width	50.0 ″ 1,270 mm
	Min Width	19.7 ″ 500 mm
	Max Height	21.5 ″ 545 mm
	Length	63.8 ″ 1,620 mm
	Min Height	14.4 ″ 365 mm
	Total Volume	24.7 ft ³ 0.7 m ³

GT50

Engine specs

Maximum Continuous Power

400 hp

Take-Off Power (5mins)

440 hp (up to 10.000 ft, ISA +15°C)

Emergency Power (30s)

500 hp

Fuel Consumption (MCP)

35 US gallons per hour

Fuel Type

Jet A1 (Alternatives to be announced soon)

Cruise speed

140 kts

Max range

700 nm

TBO

5,000 hours or 20,000 cycles, on condition.

Control

Hill FADEC (Dual channel, with manual reversion)

Management

Fully integrated with Hill Digital Cockpit

Weight

100 kg / 220 lbs

Payload

1760 lbs
